Nucleon Mobile Boat Hoist

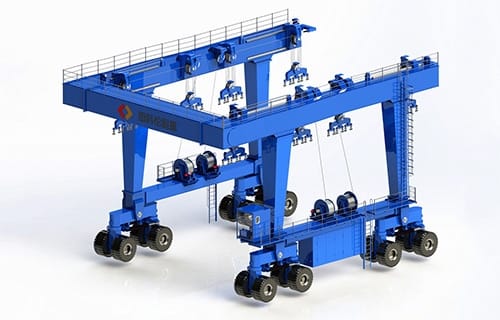

Nucleon Mobile Boat Hoist is apply in water sport meetings, aquatic clubs, voyages and so on. This crane is usually used to transporting boats or yachets into or out of shoreside water channel to maintain or launch, cranes composed by hoisting mechanism, steering mechanism, wheelsets, electrical control system and hydraulic transmission system. It's adopt structure form is open box shape and able to transport boats that are higher than the crane itself.
E-Mail: sales@nucleon-cranes.com
Тel: +86-18238776721
PRODUCTS LIST
CASES
The Success of Acceptance Ceremony for 300 tons Yacht Crane Exported to Iran
NEWS
- Nucleon Display in the Royal Palace in Paris, French
- 5 Ton Domestic Machine
- Total Quality Management to Promote Enterprise Steady Development
Description

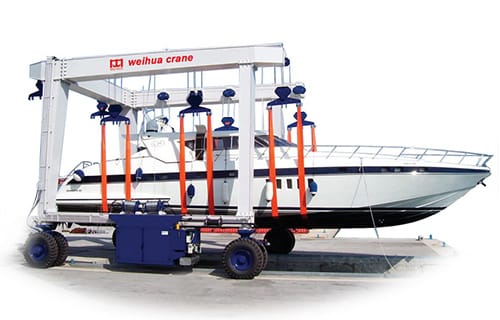

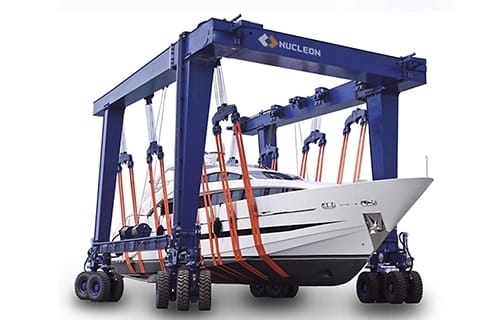

Nucleon Mobile Boat Hoist is apply in water sport meetings, aquatic clubs, voyages and so on. This crane is usually used to transporting boats or yachets into or out of shoreside water channel to maintain or launch, cranes composed by hoisting mechanism, steering mechanism, wheelsets, electrical control system and hydraulic transmission system. It's adopt structure form is open box shape and able to transport boats that are higher than the crane itself.
The Boat Hoist Crane includes the following items: main structure, traveling wheel block, hoisting mechanism, steering mechanism, hydraulic transmission system, electric control system, the main structure for the “U”type , it can transfer the boat which the height surpass its height.
According to different requirements of our customers, the Boat Hoist Crane can handling different tons boat or yacht (10T-800T) from the shore side, it can be used for the maintenance on the shore side or can put the new boat inside the water. It adopts the soft and firm belt to lift the boat, yacht; it will never hurt the surface. It also can put the boat in sequence quickly with small gap between each two boat.
Main Specifications:
1. Capacity: 10-800ton
2. Ground specific pressure: 6.5-11.5kg/cm2
3. Grading ability: 2%~4%
4. Lifting speed: Full load: 0~2m/min; Non-load: 0~5m/min
5. Running speed: Full load:0~2m/min; Non-load:0~35m/min
6. Working ambient temperature: --20 ℃~+50 ℃
Detailed Specification
1. Electrohydraulic transmission system of the heavy duty ship lifting gantry crane is adopted in hoisting and traveling parts and features small volumn, light weight, compact structure, smooth running, quick response, small inertia, easy operation and automation. The crane is able to high-speed start, brake and turn.
2. Multipoint hoist disperses forces acting on the hull without strongly pressuring. Movable hoisting points and dynamic balance are suitable for boats of different types and can automatically adjust the deflection angle for adaption.
3. Radar anti-collision method is safe and effective.
4. Adoption of load sensitive control technology enables the crane to produce output as actual demand to prevent energy wastes.
5. Soft but sturdy hoisting belts make no damage on hulls surface.
Safety Features of the Nucleon Mobile Boat Hoist
Safety is the most important issue for crane. To ensure the safety, the following safety devices are equipped with NUCLEON cranes.
1.Overload protection in the event of overload, the hoist unit switches off and only the lowering motion is possible
2. Long and cross travel limited by means of preliminary and final limit switches or Wireless anti-collision device
3. Anti-falling protection for the Three-in-One electric motor of trolley and crane
4. All movements can be switched off by actuating the emergency-off switch at the control station
5. Long time bearing polyurethane materials buffer fixed to prevent over traveling
6. Safety hook latch used for avoiding the lifted material out off from the hook
7. Audible and visual alarm device to inform the person stay near by the travelling crane.
8. Rain Cover for lifting mechanism of outdoor cranes, electric cabinet and driving mechanism
9. Protective earth conductor is fitted as standard
10.Voltage lower protection system
11.Current overload protection system
Advantages of the Nucleon Mobile Boat Hoist
♦Because Boat Hoist Cranes ride on the ground rather than on overhead runways, they don't require a
runway structure, nor do they usually require concrete foundations.
♦ Installation is fast and simple.
♦ Depending on the environment and application, gantry cranes can sometimes provide the same material handling capabilities as a comparable bridge crane system, but with a significant cost savings
♦ Simple and compact structure
♦ Light weight
♦ Steady performance
♦ Easy maintenance
♦ Less wastage
♦ Easy installation and convenient maintenance
♦ Excellent exchangeability for parts and components
Boat lifting hoist/crane main functional features and advantages:
1. It adopts the soft and firm belt to lift the boat, yacht; it will never hurt the surface.
2. It also can put the boat in sequence quickly with small gap between each two boat.
3. Powered by its own diesel generator, the whole system is hydraulic driven;
4. The lifting points are adjustable, many points could be lifted at the same time.
5. Rubber-tyred traveling mechanism makes an easy traveling, with the functions of oblique movement, Ackerman steering and rotate at the same place. With a 4% climbing ability when full load.
6. The main beam and end beam are connected by hinge form, which eliminate the partial stress due to the bad road condition.
Our crane has different types working class, such as light medium, and heavy Cranes, including A1 to A8 levels. According to your business needs, we can customize 0.5 tons to 1000 tons cranes, with maximum span of 196 meters. Our products are found in all sectors, with excellent craftsmanship and technical team. Crane we produce in various industries have been widely used.
.jpg)
General Description
The Boat Hoist Crane includes the following items: main structure, traveling wheel block, hoisting mechanism, steering mechanism, hydraulic transmission system, electric control system, the main structure for the “匚”type , it can transfer the boat which the height surpass its height.
According to different requirements of our customers, the Boat Hoist Crane can handling different tons boat or yacht (10T-800T) from the shore side, it can be used for the maintenance on the shore side or can put the new boat inside the water. It adopts the soft and firm belt to lift the boat, yacht; it will never hurt the surface. It also can put the boat in sequence quickly with small gap between each two boat.
Main characteristic of the product:
--For the crane traveling, it can move in diagonal direction, it also can steering in 90 degree, it also can put the boat in any designated position according to requirements.
--It can adjust the width of the main girder according to the boat in case to handling different side boat.
--This hoist own the performance of low expense, high performance, easy to operate and maintenance and so on,.
--Low cost on the daily operation, it adopts the soft and firm belt to ensure there is no harm to the boat when hoisting.
--It can make the boat in order quickly,, it also can adjust the gap between each boat according to different condition.
Specification
Order Notices:
We welcome your customization of this boat lifting crane, please inform us your following working conditions:
1. Basic requirements:
a. Inside clear width A: m;
b. Pier width:left width B1: m;right width B2: m;
c. Tide rise, height from water surface to pier surface C: m;
d. Tide fall, height from water surface to pier surface D: m;
2. Boat size:
a. Max. overall size: (length)E: m;(width)F: m;(height)G: m;
b. Min. overall size: (length)E: m;(width)F: m;(height)G: m;
c. Max. draft of vessel H: m
d. Height from bottom of boat to pier surface J: m
|
100t~300t Boat Lifting Hoist/Crane Main Parameters |
|||||
|
Rated capacity |
t |
100 |
150 |
200 |
300 |
|
Grounding specific pressure |
kg/cm2 |
11.5 |
11 |
11.5 |
6.5 |
|
Grade ability |
m/min |
2% |
4% |
4% |
4% |
|
Lifting speed m/min |
Full load |
0~2 |
0~1 |
0~2 |
0~1 |
|
Non-load |
0~5 |
0~4 |
0~3 |
0~3 |
|
|
Running speed m/min |
Full load |
0~20 |
0~20 |
0~20 |
0~20 |
|
Non-load |
0~35 |
0~35 |
0~35 |
0~35 |
|
|
Working ambient tempt. |
℃ |
Below 20℃~ above 50℃ |
|||
