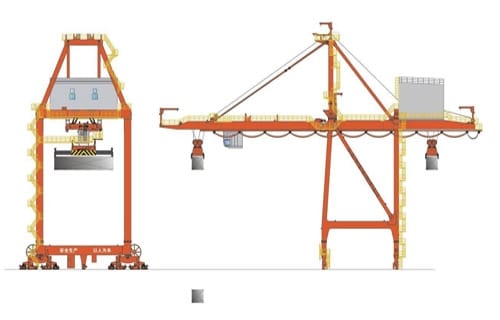

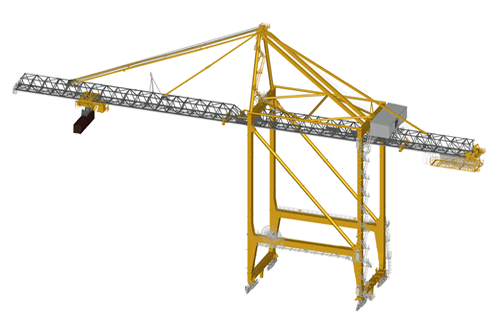

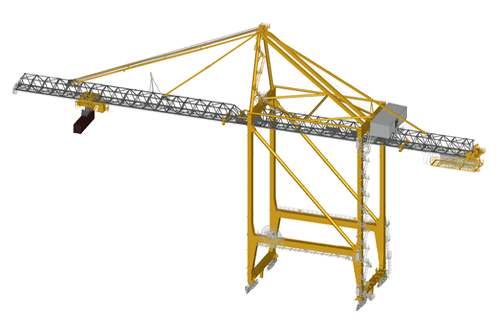

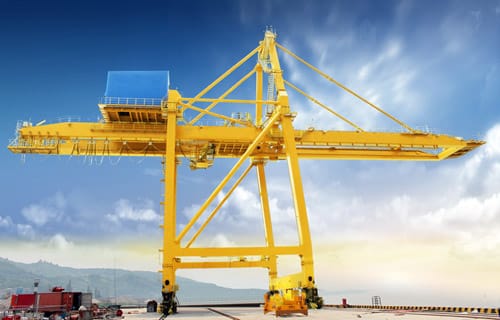

Ship to Shore Gantry Crane
Ship to shore gantry crane (Quayside container cranes), mainly composed of steel, lifting structure, tilt mechanism, crane traveling mechanism, trolley traveling mechanism, machine room, lift container spreader, electrical equipment and other necessary safety and auxiliary equipment, Depending on the type of trolley, the model is divided into traction, semi-traction. self-propelled, with the adoption of PLC control systems and CMMS automatic-fault monitoring and diagnostic functions, there is sufficient communication and lighting.The steel is divided into single, double box structure. the girder structure and H- type gantry structure.
PRODUCTS LIST
CASES
The Success of Acceptance Ceremony for 300 tons Yacht Crane Exported to Iran
NEWS
- Nucleon Display in the Royal Palace in Paris, French
- 5 Ton Domestic Machine
- Total Quality Management to Promote Enterprise Steady Development
Product introduction
1.A ship-to-shore (STS) crane, also known as a container crane, which is a kind of hoisting machine special used on quayside, with swiftness benefit for loading and unloading container vessel.
2.This product is mainly composed of gantry structure, Boom, trolley, crane traveling mechanism,Boom hoisting system, moving cab, machine room, spreader, electrical equipment and other necessary safety and auxiliary equipment.
3.There are two common types of STS crane: Boom hinged container crane which used on sea shore, and Boom fixed container crane which used on river side. Boom hinged container crane, the boom can be lifted in the air to clear the ships for navigation. Boom fixed container crane's benefit is largely cuting down investement and operating cost.
4.The cranes handling 20 feet, 40 feet, and 45 feet containers. Especially, the Super Post Panamax container crane can lifting two 40 feet containers.
Features
High Quality Material and Components
The steel plates of harbor crane are all from Bao steel, Wuhan steel, Handan steel, all steel should be inspected by our National technology test laboratory to ensure the quality.
The motor, gear box can be China top brand or International brand. The main electric unit can be Siemens, Schneider, ABB.
Modular Design
The components of crane are designed into various series standard modulars. And different modulars can be asseblied to different products.
All the modular components all can assembly and disassembly for good transpotation.
Standard modular components can be manufactured with short producing time and steady quality. So that we can short the delivery time.
High Security
Overload limit monitor, it can shows the loading capacity and help the operator to avoid overload. Automatic checking system.The controller can check the effectiveness of power voltage, the default Phase protection device and zero position of all buttons.
The driving and driven wheels have edge brake, and the brake interlocks with the electric to avoid crane from gliding so that can improve the safety.
