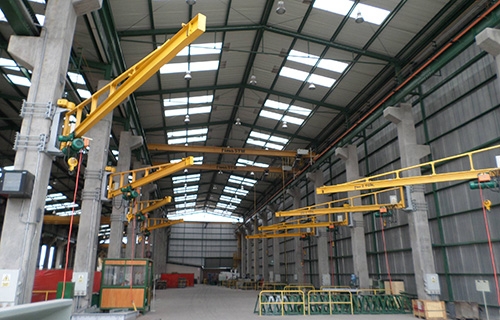

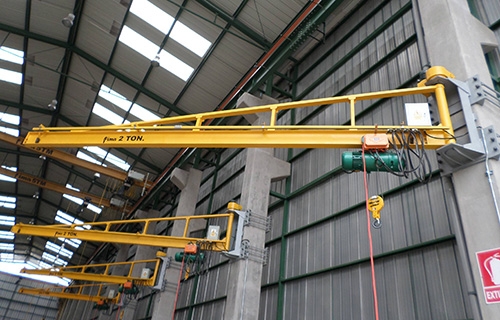

Wall Mounted Jib Crane
It is a new generation of the hoist equipment developed to meet the requirement of modernized production.
It's fixed on the floor and it could stand independently. And the arm fixed on the top of fixed pillar.
If the arm need swing, the swing motor will be equipped on crane!
And then the electrical will be installed on the cranes per actual demands.
E-Mail: sales@nucleon-cranes.com
Тel: +86-18238776721
PRODUCTS LIST
CASES
The Success of Acceptance Ceremony for 300 tons Yacht Crane Exported to Iran
NEWS
- Nucleon Display in the Royal Palace in Paris, French
- 5 Ton Domestic Machine
- Total Quality Management to Promote Enterprise Steady Development
Description
It is a new generation of the hoist equipment developed to meet the requirement of modernized production.
It's fixed on the floor and it could stand independently. And the arm fixed on the top of fixed pillar.
If the arm need swing, the swing motor will be equipped on crane!
And then the electrical will be installed on the cranes per actual demands.
Product Feature
1.Optimization design, light structure;
2.It has the advantage of novel structure, reasonable, simple, convenient operation and use, flexible rotating and movement, light net weight, it’s the efficient energy-saving materials lifting machine.
3. Flat cable feeding line with sliding supports
4. Finish: Bright yellow polyurethane topcoat RAL 1028 with 10 years service life.
5. Slewing is effected on a plain bearing with a self-lubricating ring
6. Large height adjustment
7. Brackets are secured by H.R.M. 24 bolts, class 10.9.
8. Tightening must be achieved by using torque wrench
tightening torque: 92kgm.
9. Strong profile connection
10. Light construction - low loading for the building
11. Easy to install
Specification
|
Model |
BXD0.25 |
BXD0.5 |
BXD1 |
BXD2 |
BXD3 |
BXD5 |
|
Lift capacity(t) |
0.25 |
0.5 |
1 |
2 |
3 |
5 |
|
L mm |
3200 |
3200 |
3400 |
3500 |
4500 |
4700 |
|
R1 mm |
250 |
250 |
300 |
450 |
500 |
550 |
|
R mm |
3000 |
3000 |
3000 |
3000 |
4000 |
4000 |
|
H mm |
800 |
800 |
950 |
1150 |
1350 |
1500 |
