Wall Traveling Jib Crane

Description

The wall traveling jib crane is light duty hoisting equipment, which has been developing rapidly recent years. This wall traveling jib crane performs superiorly in short-distance and intensive lifting operation. It is mainly composed of electric hoist, swing arm, driving device and end beams.

The wall traveling jib crane is widely used in warehouse, workshop, assembly line and so on.

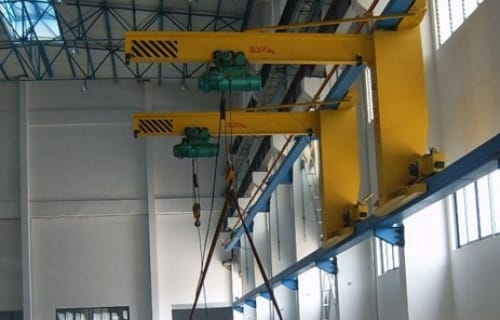

The hoist , lifting mechamism, runs under the bottom flange of the swing arm and the arm runs along the rails installed on the wall, so that the wall traveling jib crane is able to lift and move materials in a large three-dimensional space.

The wall traveling jib crane is light duty hoisting equipment, which has been developing rapidly recent years. This wall traveling jib crane performs superiorly in short-distance and intensive lifting operation. It is mainly composed of electric hoist, swing arm, driving device and end beams.

Specification

Type	Unit	BQ0.5	BQ1	BQ2	BQ3	BQ5
Ioad capacity	t	0.5	1	2	3	5
crane travelling speed	m/min	20	20	20	20	20
Lifting speed	m/min	8	8	8	8	8
Hoist travelling speed	m/min	20	20	20	20	20
Work class	A3
Power supply	220~440V,50/60HZ,3phase or customized
Lifting height	m	Customized
Jib length	m	Customized
Control mode	Pendent pushbutton control or remote control
